Powerparts BCA Converter PDU EC155 Power Distribution And Harness Kit Campervan

Description

Powerparts BCA Converter PDU EC155 Power Distribution and Harness Kit Campervan
The converter PDU harness kit is the>
With a complete plug and play system, compact yet powerful PDU unit,
Sleek Control panel and Water probe (for onboard water tanks), carrying out a conversion couldn’t be easier.

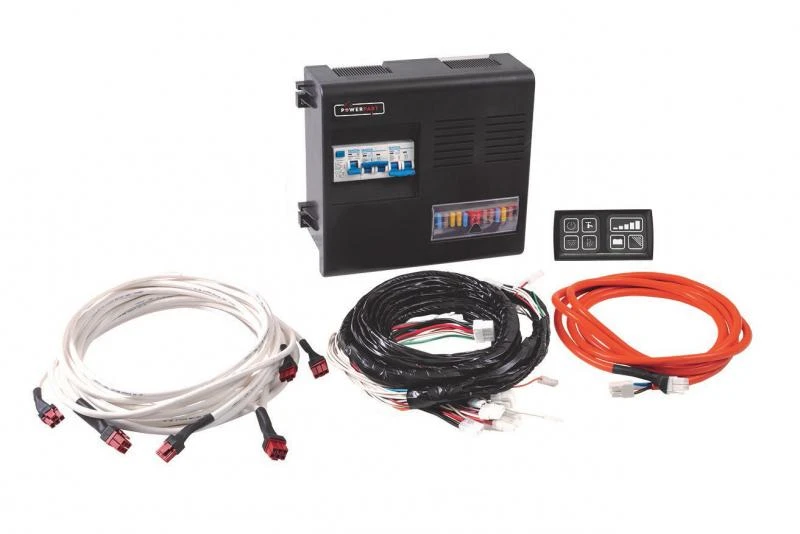

Included in Kit:
PDU, Wiring Harness,
Vegas Control Panel (With Water level indicator),
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.
PDU Dimensions Width: 307mm Depth: 93mm Height: 262mm
The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2M length to the Control Panel.
Vegas control Panel is a x2 C-Line in size.
The Button Panel has a master switch, Lights switch and Awning light switch, 2amp rated (Connection to awning light from Control Panel) and the meter Panel has a voltmeter and water level indicator.
