Powerparts BCA Converter PDU EC155 And Harness Kit With Water Probe Campervan

Description

Powerparts BCA Campervan Converter PDU EC155 and Harness Kit with Water Probe
The converter PDU harness kit is the>

With a complete plug and play system, compact yet powerful PDU unit,

Sleek Control panel and Water probe (for onboard water tanks), carrying out a conversion couldn’t be easier.

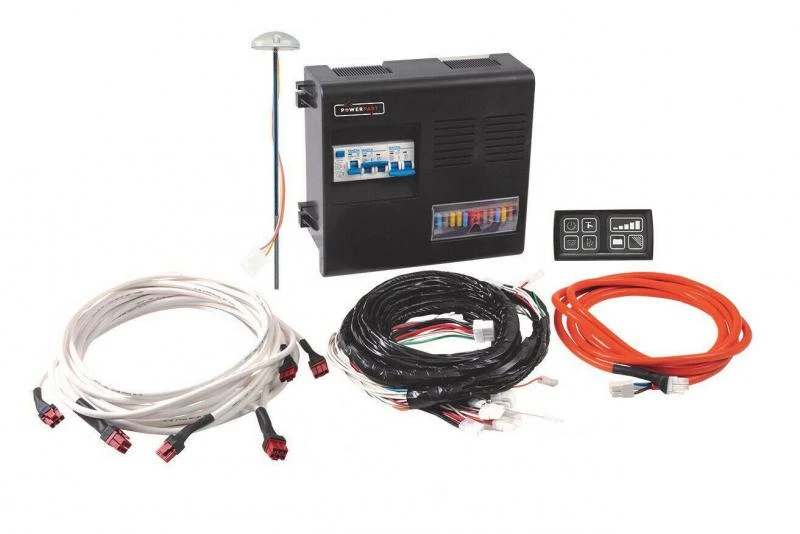

Included in Kit:

PDU, Wiring Harness,

Vegas Control Panel (With Water level indicator),

Water probe

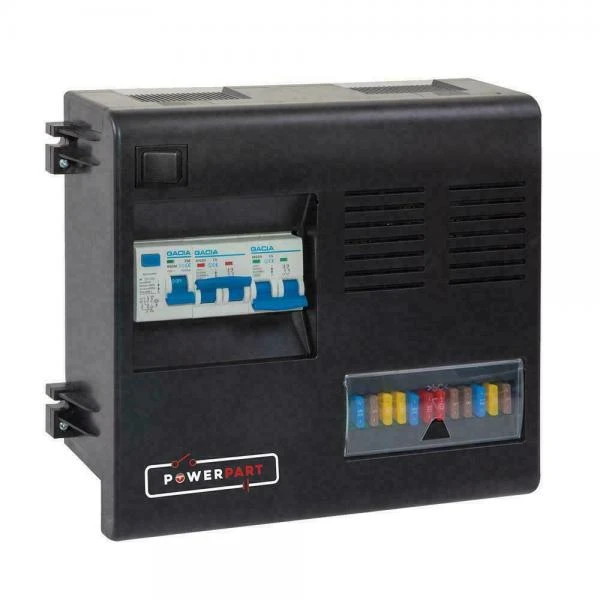

The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.

It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.

There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.

PDU Dimensions Width: 307mm Depth: 93mm Height: 262mm

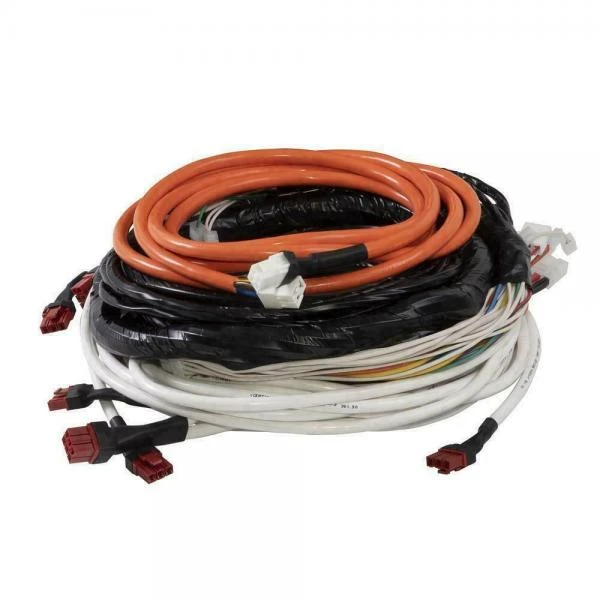

The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2M length to the Control Panel.

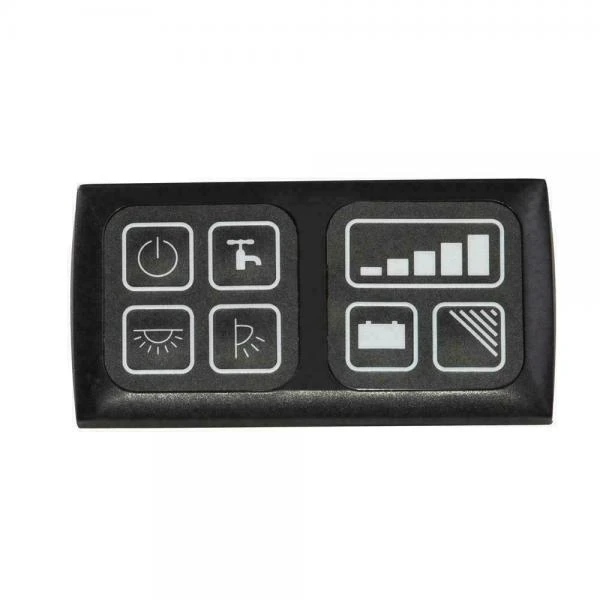

Vegas control Panel is a x2 C-Line in size.

The Button Panel has a master switch, Lights switch and Awning light switch, 2amp rated (Connection to awning light from Control Panel) and the meter Panel has a voltmeter and water level indicator.

Water level probe at a maximum of 335mm that can be cut down to correct depth of water tank.
