Emove EM203 Caravan Motor Mover Single / Twin Axle Chain Driven 5 Year Warranty

Description

Emove EM203 Caravan Motor Mover Single / Twin Axle Chain Driven 5 Year Warranty

A simple-to-use caravan mover, suitable for twin axle and single axle caravans.

Featuring the Emove easy-wind system with no need to get down on hands and knees to engage the rollers, the Emove EM203 offers incredible value with its advanced specification, and is suitable for single axle caravans

For twin axle you can simply double up and use 2 units

From the very first time you use the Emove EM203 it will be that this caravan mover has been developed and refined over the last ten years to give the best possible experience.

To start with, when engaging the rollers on the tyres, there is no need to struggle on hands and knees with the archaic lever engagement system.

Instead, the EM203 uses the effortless Emove Easy-Wind system so both rollers can be engaged at the same time by simply winding in and out. With Easy-Wind, simple adjustments can be made for tyre wear or tyre slippage (something that is impossible for most manual engage movers).

The Rollers themselves have been made from solid aluminium to give you world>

The Body work of the mover has been E-coated for extra protection. Wherever possible composite materials are used to save weight and reduce exposed metal work.

The soft plastic handset of the 203 is designed to feel good in the hand. It gives you complete and effortless control of the caravan: to move in all>

On top of this great design, the Emove has a unique display which indicates when the leisure battery needs recharging or if the caravan is overloaded.

Like all Emove caravan movers, it is substantially lighter than its competitors.

The EM203 is the most technically-advanced mover available at this price point.

The EM203 is fully backed up with its legendary 5-year warranty which includes home call outs if fitted professionally.

Features

• Emove display dash handset giving caravan overload and low battery indicators
• Easy wind dual roller engagement
• Alloy rollers
• Suitable for single axle
• E coating paint work and half cover
• Includes soft start/stop technology for accurate and shockproof maundering
• 5 year parts and labour warranty.

Safe Working Load: Tarmac 2250kg / Sand and gravel 1800kg (two motors) on the flat

Incline: Moves 1800kg up 18% slope

Total weight: 37kg including fittings.

Not suitable for: Freedom, Eriba or Goba caravans or Opus folding camper.

Suitable for twin axle and single axle caravans
Chain Driven Motor Mover (Box Qty: 1)
2 Part Item
Remote Control Operated
Box 1 (Unit):
H 74cm x W 46cm x D 33cm
Weight: 29.5KG
Box 2 (Fixtures & Fittings):
H 149cm x W 26cm x D 9cm
Weight: 13KG
Individual Product:
H 35cm x W 22cm x D 20cm
Weight: 27.5KG

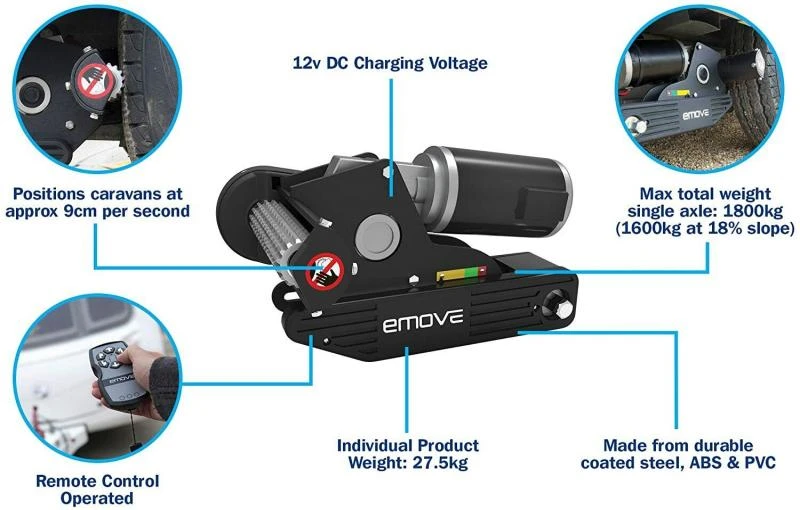

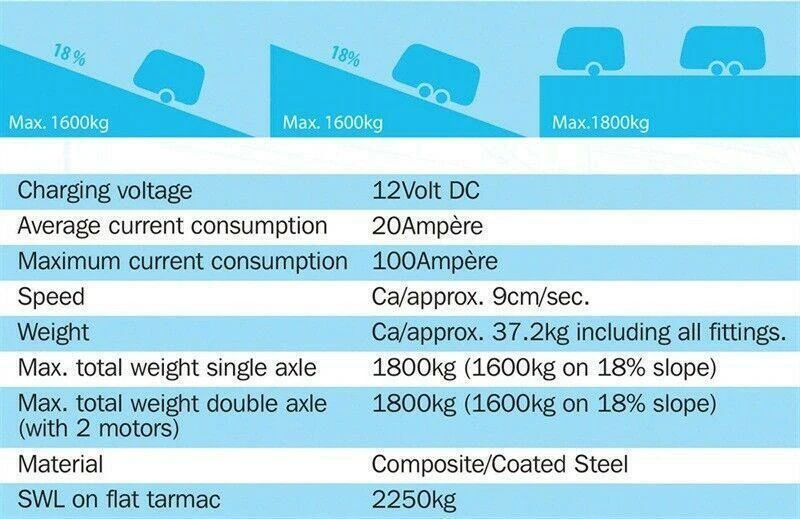

Technical Spec:
Charging Voltage: 12v DC
Average current consumption: 20Amp
Maximum current consumption: 100Amp
Speed: Ca./approx 9cm/sec.
Weight: Ca./approx 37kg (excl.accu/battery)
Max. total weight single axle: 1800kg (1600kg at 18% slope)
Max. total weight double axle (with 2 motors): 1800kg (1600kg at 18% slope)
Product Material: Coated Steel, ABS, PVC.
