Dometic Seitz S4 W700 X H450 Sliding Window – SE9104100155

Description

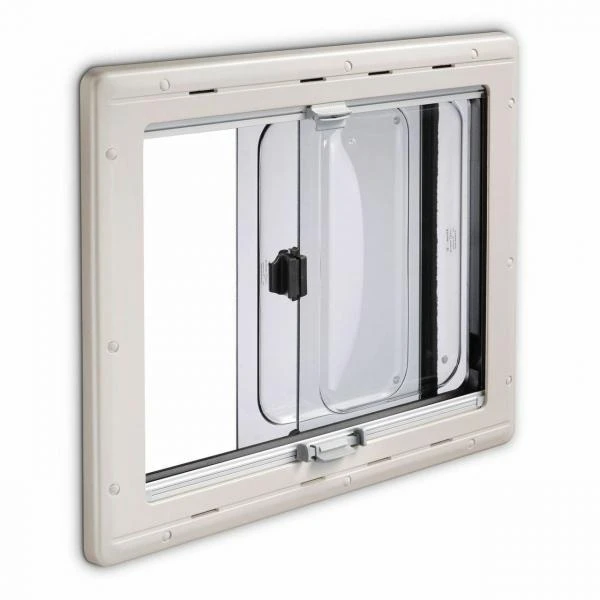

Dometic Seitz S4 W700 x H450 Sliding Window – SE9104100155

Seitz S4 SLIDING WINDOW SYSTEM

S4 is supplied as a complete kit of window
and integrated Blind flyscreen system, all in one box.
The Seitz S4 is
the window of choice by many motorhome and camper manufacturers
throughout Europe.
Easy installation and long life span are guaranteed:
Outer and inner frame are simply screwed together from inside, clamping
the window to the vehicle wall, for a lasting and continuous seal.
Highly versatile: for wall thicknesses of 26-41 mm (fitted by shortening
the inner frame)
Blind material is white to the interior with a
thermally reflective silver aluminised coating to the outside.
Fly net
is white with no pattern.
S4 Sliding window is installed with the fixed
half pane to the rear of the aperture (based on driving>the sliding pane to the front.
Available as Left or Right hand side of
vehicle version.
SIZE QUOTED IS THE APPROXIMATE CUT OUT SIZE. DO NOT CUT
HOLES UNTIL YOU HAVE YOUR WINDOWS.

Features:
Fly screen and darkening roller blinds can be clipped together and simultaneously adjusted with just one hand
High degree of insulation: darkening roller blinds with aluminium coating
Quick and easy installation
Robust quality with double acrylic glazing
Highly versatile: for wall thicknesses of 26-41 mm (fitted by shortening the inner frame) Dimensions product> Dimensions product> Net weight 6.50 kg
Dimensions ordered> Dimensions ordered> Standard mount. material thickness 1 min 26 mm
Standard mount. material thickness 1 max 26 mm
Possible material thickness 1 min 27 mm
Possible material thickness 1 max 41 mm
Cut out> Cut out
