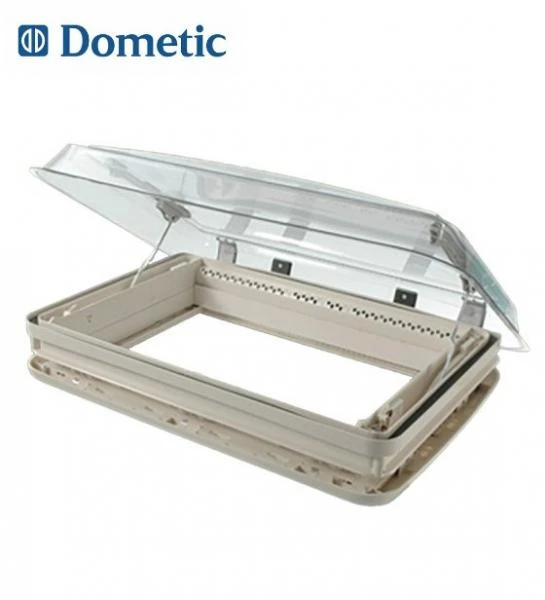

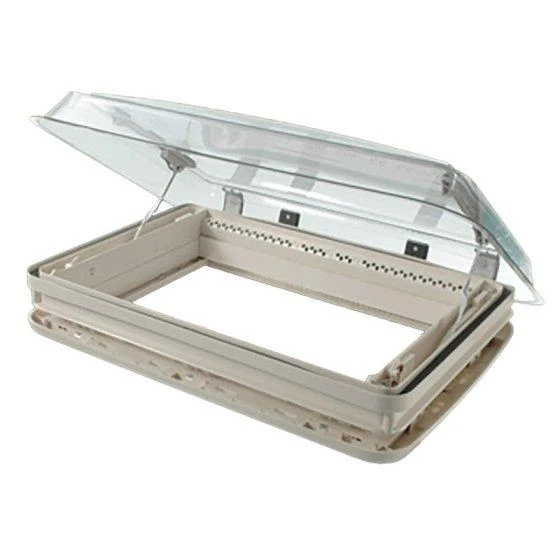

Dometic Midi Heki Complete Rooflight 700 X 500 Crank Version With Ventilation

Description

Dometic Midi Heki Complete Rooflight 700 x 500 Crank Version with Ventilation

Big>With the same comfort features and exceptional quality as the Mini-Heki but with bigger dimensions for installation: 700 x 500 mm. Ideal for owners of vehicles where Heki standard model.
Version with operating bar opens in three positions: completely open, half open and bad weather position. With the glass overlapping on the sides no water can splash inside when the dome is in bad weather position. s could not be installed – now they can get an optimal solution.
The handy operating lever allows easy adjustment of the glass dome: the dome is automatically locked when closed
Available with operation bar, with crank and electronic version
Double-glazed, aerodynamically shaped glass dome made of acrylic pane and tinted light grey
The frame is made of durable, weatherproof ASA
Inner and outer pane glued together to guarantee easy cleaning
Versions with crank and electronic versions opens smoothly.
Die-cast finish prevents unwanted incidence of light through the frame
Available with or without compulsory ventilation
Easy installation in roofs with a thickness of 25 to 60 mm
Frame colour: cream white (RAL 9001)
Weigths: Version operating bar: 8.0 kg Version crank: 8.5 kg Version electronic: 9.0 kg
Technical Data
Weight (kg) 9
Cut out (mm) 700 x 500
Installation area (mm) 880 x 650
Possible roof thickness (mm) 25-60
Max. opening angle 60°.
