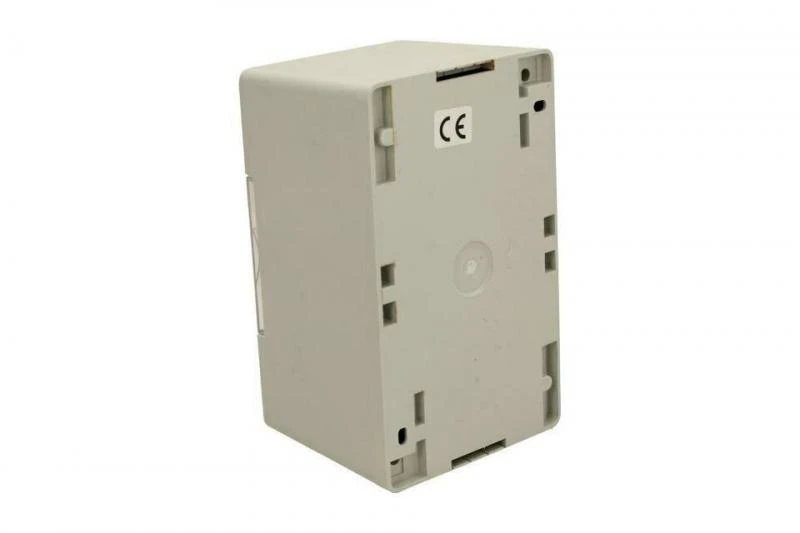

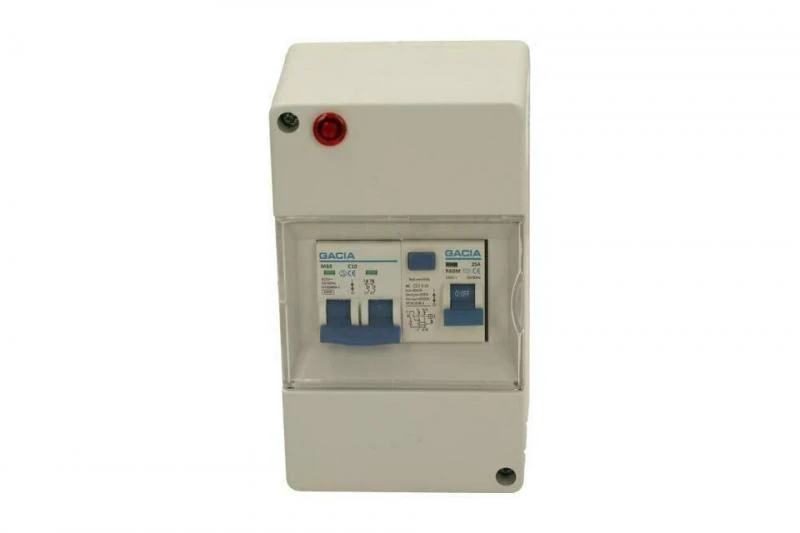

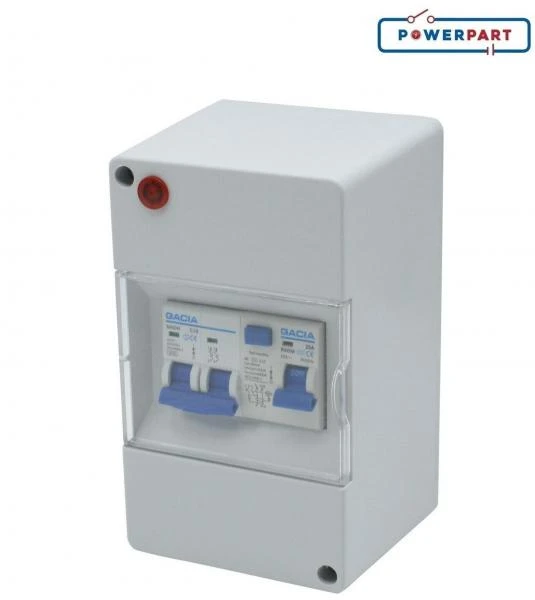

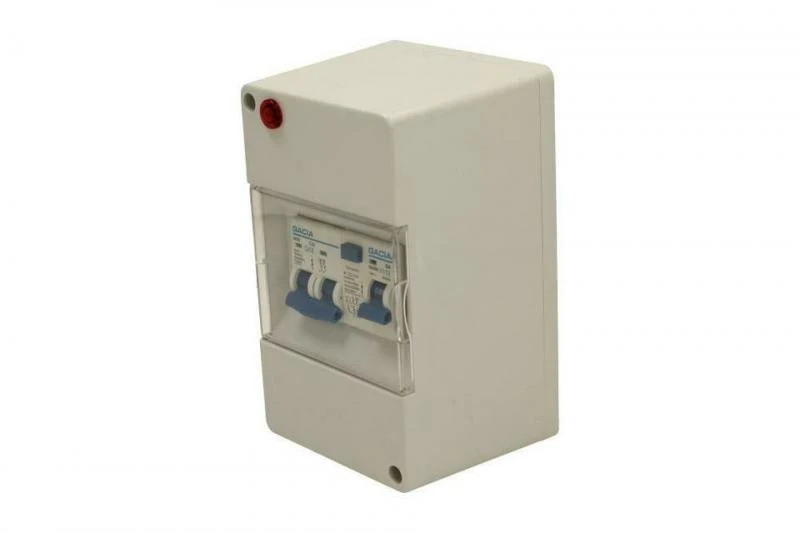

Caravan Fuse Box RCD Mains Consumer Unit 240 Volt Standard PO103

Description

Caravan Fuse Box RCD / Mains Consumer Unit 240 Volt Standard PO103Consumer Unit (Fuse Box)

The Consumer Unit Fuse Box is fitted with a 25Amp residual circuit breaker and a 10Amp double pole miniature circuit breaker.

This gives you maximum security with mains electricity in your caravan.

The consumer unit provides trip protection for over-current and current leakage for a single mains circuit, which can have multiple mains sockets and transformer connections up to a total draw of 10Amps.

Features

Mains Consumer Fuse Box

Gives you maximum security with mains electricity in your caravan

Provides trip protection for over-current and current leakage for a single mains circuit

Polarity check light

Ideal for smaller caravans and motorhomes, or simple van conversions

Specifications

Dimensions: Height 181mm x Width 110mm x Depth 94mm

25Amp residual circuit breaker

10Amp double pole miniature circuit breaker

Product reference: PO103.
