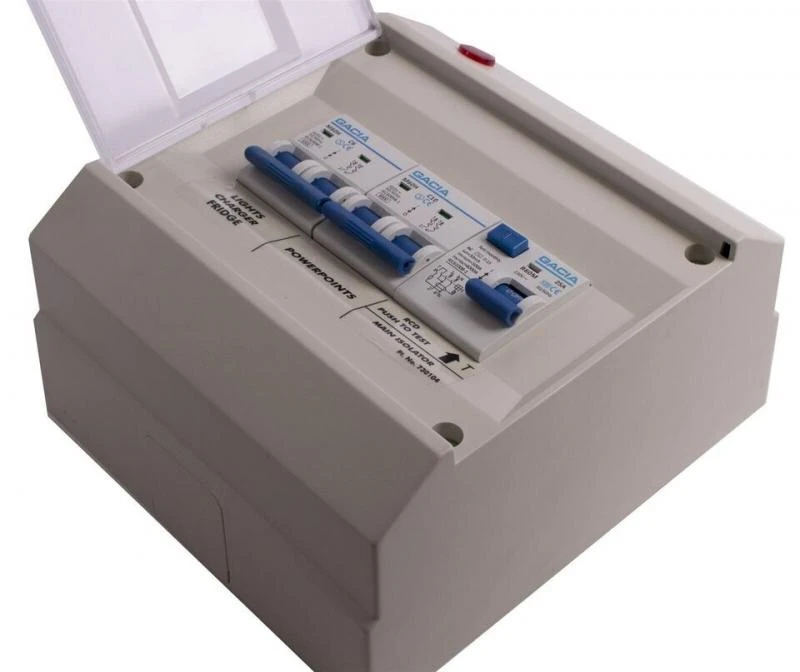

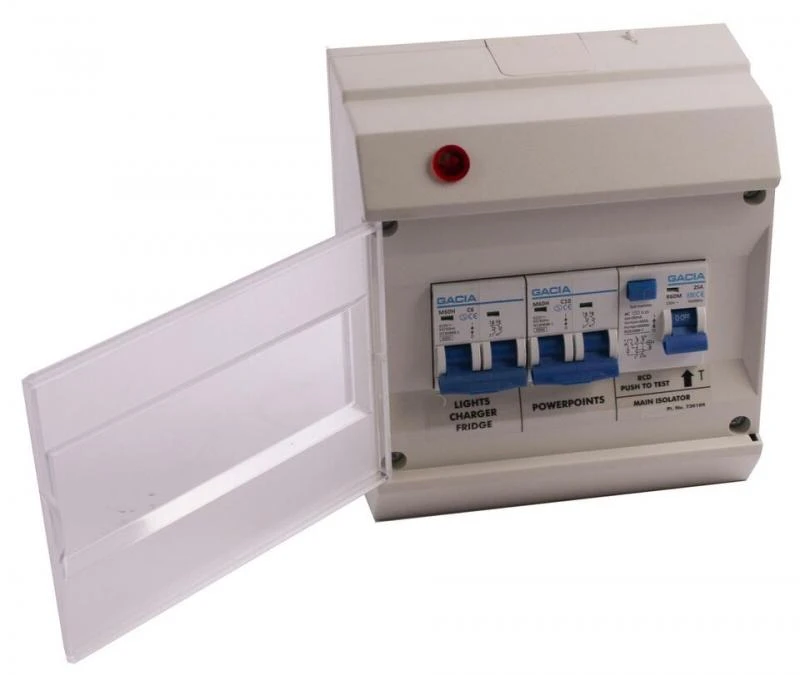

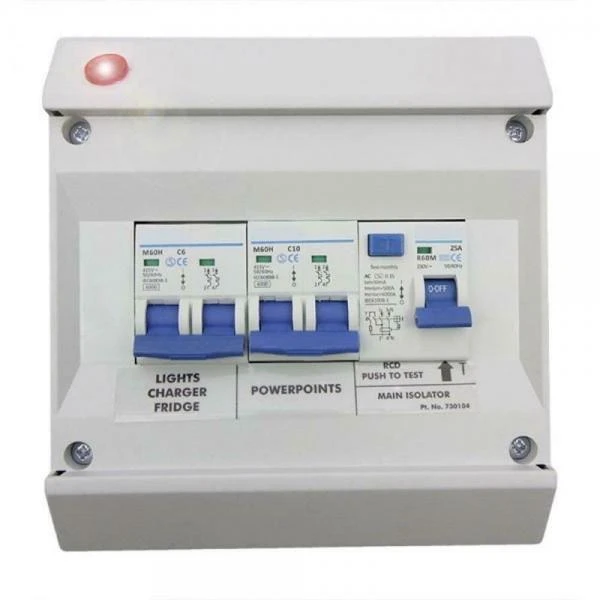

Caravan Deluxe Mains Consumer Unit 240v Caravan Motorhome Camper PO104

Description

Caravan Deluxe Mains Consumer Unit 240v Caravan Motorhome Camper PO104Deluxe Consumer Unit (Fuse Box)

The Deluxe Consumer Unit Fuse Box is a double pole miniature circuit breaker, giving you maximum security with mains electricity in your caravan. The consumer unit is fitted with a 25Amp residual circuit breaker, 1 x 10Amp and 1 x 6Amp and includes a polarity check light- suitable for two mains circuits with a total load up to 16Amps. The consumer unit provides trip protection for over-current and current leakage for two mains circuits, each circuit can have multiple mains sockets or appliances and transformer connections but the total load on each circuit must not exceed its MCB rating. The unit can be wall-mounted and measures approximately (W)16.5cm x (H)18cm x (D)9.5cm

Features

• Deluxe Consumer Unit – Fuse Box
• Double pole miniature circuit breaker
• Giving you maximum security with mains electricity in your caravan
• Suitable for two mains circuits with a total load up to 16 Amps
• Provides trip protection for over-current and current leakage
• Can be wall-mounted
• Ideal for caravans, motorhomes and campervans

Specifications

• Fitted with 25 Amp Residual Circuit Breaker
• 1 x 10 Amp & 1 x 6 Amp Double Pole Miniature Circuit Breaker
• Dimensions: (W)16.5cm x (H)18cm x (D)9.5cm
• Product reference: PO104
• Barcode: 5060070210988
