12N & 12S 7 Pin Plastic Plugs Grey And Black For Caravans 12 Volt 12 N & 12 S

Description

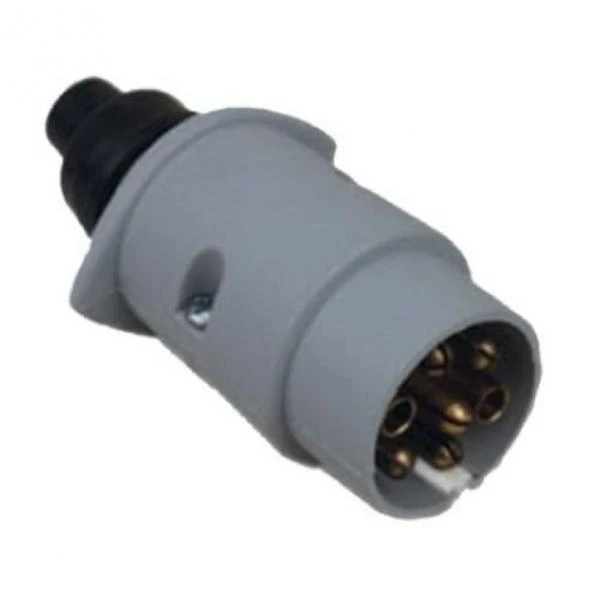

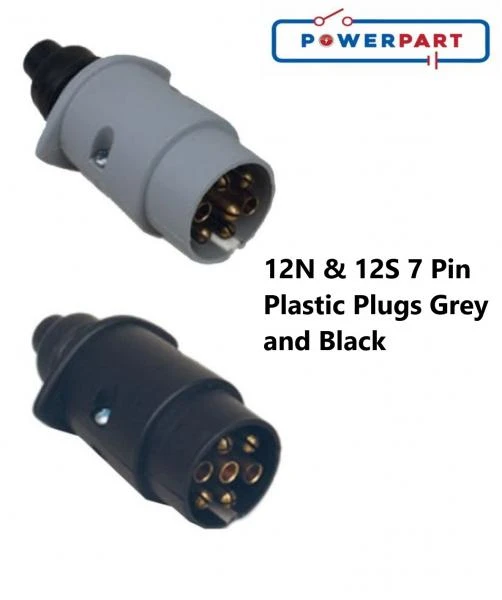

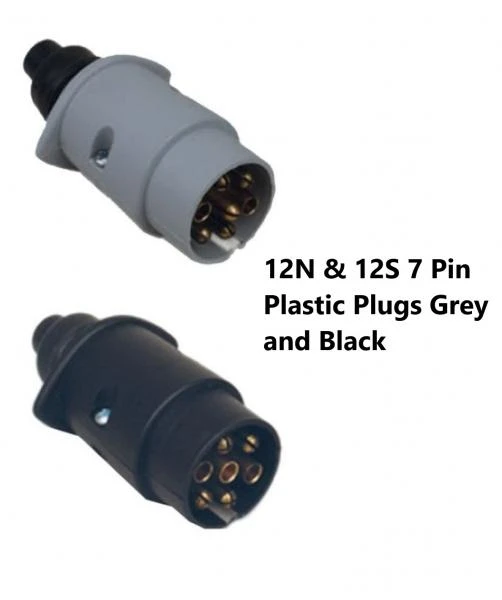

12N & 12S 7 Pin Plastic Plugs Grey and Black for Caravans 12 Volt 12 N & 12 S

12N & 12S 7 Pin Plastic Plugs for Caravan 12 Volt
12 Volt N Type 7 pin plastic plug
Durable plastic construction
Screw type terminals for easy wiring
Brass pins
For caravan lights
Comes with fitted grommet for cable entry
Wiring diagram:
Pin 1 Yellow – L/H indicator
Pin 2 Blue – Fog lamps
Pin 3 White – Earth return
Pin 4 Green – R/H indicator
Pin 5 Brown – R/H Tail lamps
Pin 6 Red – Stop lights
Pin 7 Black – L/H Tail lamps
12 Volt S Type 7 pin plastic plug
Durable plastic construction
Screw type terminals for easy wiring
Brass pins
Comes with fitted grommet for cable entry
Wiring diagram:
Pin 1 Yellow – Reversing lamps
Pin 2 Blue – Battery charging
Pin 3 White – Earth return (for pins 2 & 4)
Pin 4 Green – Power supply
Pin 5 Brown – Spare
Pin 6 Red – Fridge
Pin 7 Black – earth return (for pin 6).
